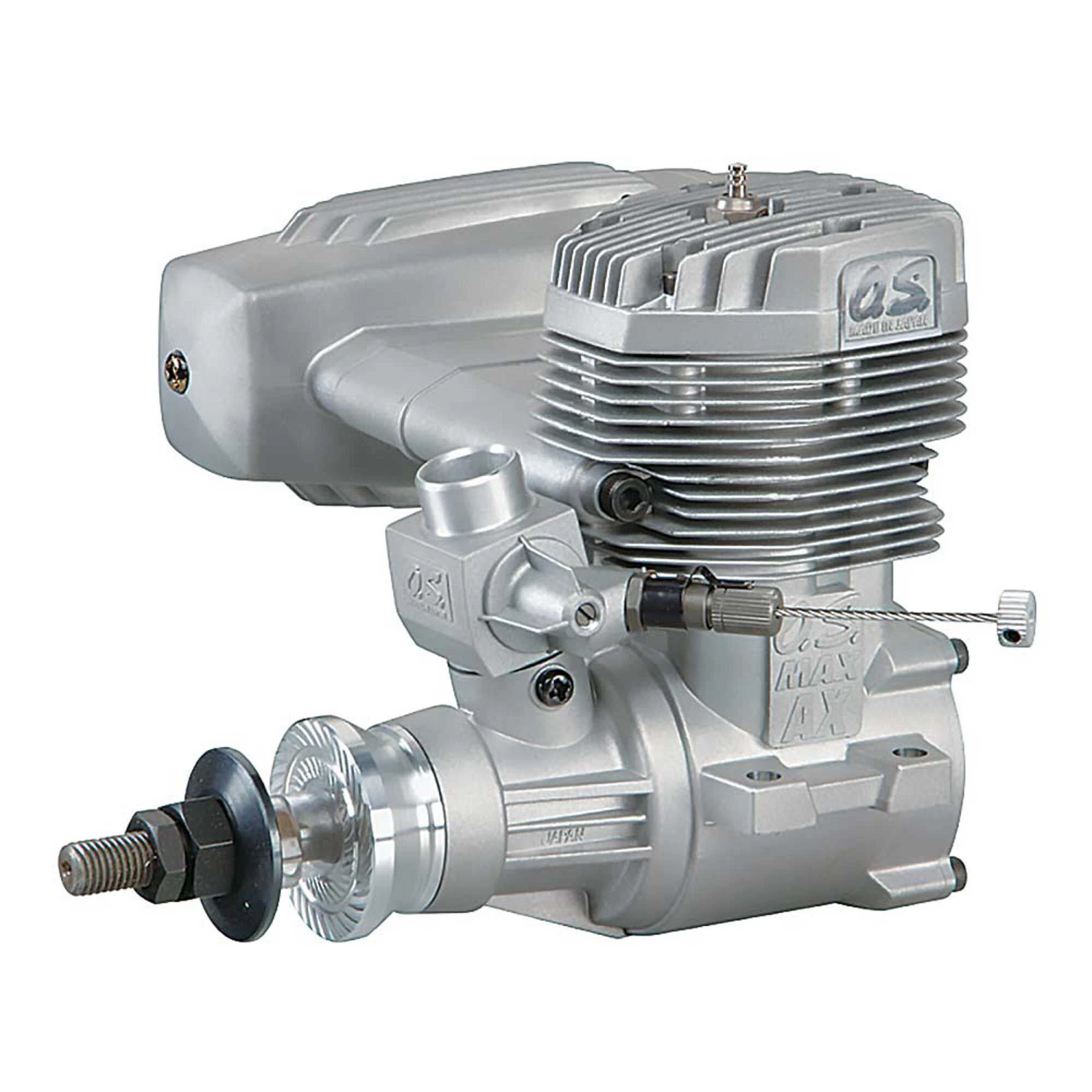

OS Engines 120AX Ringed 1.20 Airplane Glow Engine with Muffler

Original price was: $354.99.Current price is: $87.00.

SKU: OSMG0650 Category: Engines Tag: OS Engines

Fast, friendly, always here to help.
Quality at its Finest
Friendly, efficient service, always online.
There are quality problems, free return and exchange

Description
Reviews (0)

Product Details

Key Features

Ideal for 3D, Precision and Sport flying
Mounting Application: Mounts in same space as the .91FX (actual mounting dimensions vary slightly
Internal Construction: Steel piston ring and liner, aluminum piston
Muffler: E-5020 “Power Box” with extension and 90° adapters
Carburetor: 70D with rearward angled needle valve for safety
Glowplug: O.S. #8 supplied with engine, A5 (OSMG2693) will also work
Warranty: Two-year limited

icon-box

In The Box

O.S. Max Two-Stroke 1.20AX Ringed Engine with E-5020 Power Box Muffler, #8 glow plug, muffler adapter, prop washer and lock nut, needle valve extension cable,instruction manual and decal sheet, two muffler screws, two muffler extension bolts, two long muffler bolts.

icon-how-to

Needed to Complete

Fuel: Two-Stroke with 18% lubricant and 5-20% nitromethane
Propeller: 15×10-12 or 16×8-10
Field Equipment: Glow starter, fuel filter, fuel pump, fuel tubing

Product Specifications

Manufacturer #: 19210
Bore: 1.197″ (30 mm)
Carb Type: Rotary
Crankshaft Threads: UNF5/16-24
Crankshaft Type: Threaded
Cylinders: Single
Displacement: 1.218 cu in (19.96 cc)
Engine (Only) Weight: 1.305lbs (592g)
Power Type: Glow
Muffler Type: 2-piece aluminum
Muffler Weight: 7.07 oz (219.2 g) w/90 deg adapter installed, 7.9 oz (245 g) w/extension installed
Oil Type & Content: At least 18% synthetic lubricant
Plug Type: O.S. #8
Product Height: 4.3″ (109.2mm) bottom of crankcase to top of cylinder head
Product Length: 3.9″ (100.2mm) from back plate to front of drive hub
Product Width: 2.6″ (67mm) at mounting tabs
Prop Range: 15 x 10-12 or 16×8-10
RPM Range: 1,800 – 9,500 RPM
Stroke: 1.083″ (27.5mm)
